-Produit na biso ekoki kosalelama mpo na Raspberry PI na nzela ya USB mpe HDMI Interface.Trace ya écran I2C mpe USB Optional, TFT Display MIPI mpe HDMI Optional.

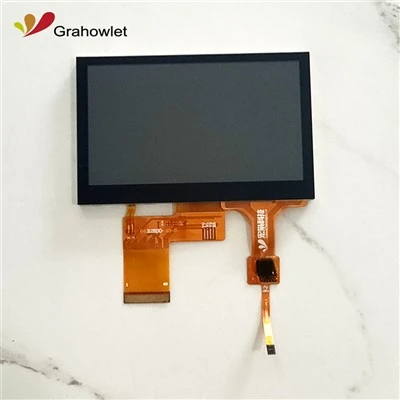

-Ecran tactile oyo ya 4 pouces Raspberry Pi esimbaka système ya fonctionnement lokola Windows, Linux, Android mpe mosusu. Mingi mingi esalemi na électronique ya consommation, soutien spécial-Structure en forme, mingi mingi esalemi na ba terminaux ya maboko, sécurité, électronique médicale mpe ba domaines misusu, traitement ya surface AG ar AF mpe ba effets spécifiques mosusu ya traitement ezali soutenu.
| Ba spécifications ya TPM . | ||
| TPM . | Numéro de modèle . | Hx0401802 |
| Marke | Grahowlet . | |
| Bonene | 4 pouce . | |
| Température ya fonctionnement . | -20 degré - 70 degré . | |
| Température ya kobomba . | -30 degré - 80 degré . | |
| Dimension ya plan . | 84,0(W) * 88,0(h) * 2,79(d) mm | |
| Esika ya kotala . | 72,53(w)x72,53(h) mm | |
| Esika ya mosala . | 71,93(w)x71,93(h) mm | |
| Ba systèmes ya soutien . | Windows/Android/Linux etc. | |
| Garantie . | 1 mbula . | |
| CTP . | Lolenge ya interface . | IIC/USB . |
| Ndenge ezali | G+F+F | |
| Contrôleur IC . | Goodix . | |
| Points ya kosimba . | 1-10 points . | |
| Transparence . | Monene to ekokani na 85% . | |
| Bokasi ya likolo . | Monene to ekokani na 6h . | |
| Tension ya alimentation ya puissance . | 2.8V - 3.3V | |
| TFT . | Ekateli | 720*720 |
| Kongɛnga . | 350CD/M2. | |
| Lolenge ya interface . | Mipi . | |
| Angle ya kotala . | 80/80/80/80 |
Mituna ya tekiniki .
Q: En fonction ya enquête, yo entreprise osali ebele ya ba cas réels ya ba applications industrielles pures. Okoki kopesa mwa makanisi ya kosala badesign na ba clients na biso na domaine ya application industrielle?
R: Environnement ya application industrielle ekozala relativement complexe, lokola interférence ya environnement ya réseau électrique na servo moteur, donc anti-Jaming performance ya touch IC yango moko esengeli e considérer tango ya kopona solution tactile capacitive na ebandeli, sinon, na application ya solo ya batch, ekozala na ba erreurs ndenge na ndenge lokola, touchscreen chaotic saut. Esengeli tosala attention na conception ya circuit ya protection na processus ya conception ya carte mère. Soki likoki ezali, coquille, écran tactile mpe carte mère esengeli na nsuka kozala na boyokani na GND moko. Ya solo, tokotala mpe solution anti{4}}interference ya conception na processus ya conception ya capteur tactile na FPC. Pona ba détails spécifiques, okoki ko communiquer na ba techniciens professionnels na biso selon cas ya solo.
Q: Ezali na mwa ba projets oyo esengi na gamme ya température ya mosala ya module ya écran capacitif ekoma très large, lokola - 45 à + 90. Ozali na expérience mpe ba suggestions mpo na lolenge ya mosala oyo?
A: If the wide temperature requirement of the module is more stringent, it needs to be analyzed from two aspects:first, if the capacitive touch screen needs to reach this temperature level, the ordinary sensor production technology can't succeed, and we needs to take special ways to route the sensor, which can be specifically discussed with our technicians;Second, if the display screen needs to reach this temperature level, for the small size, we needs to use OLED (AMOLED) material, for the large size, we needs Mpo na kopelisa mpe kobimisa écran ya emoniseli, makambo ya sikisiki ekoki kondimama na technicien na biso.
